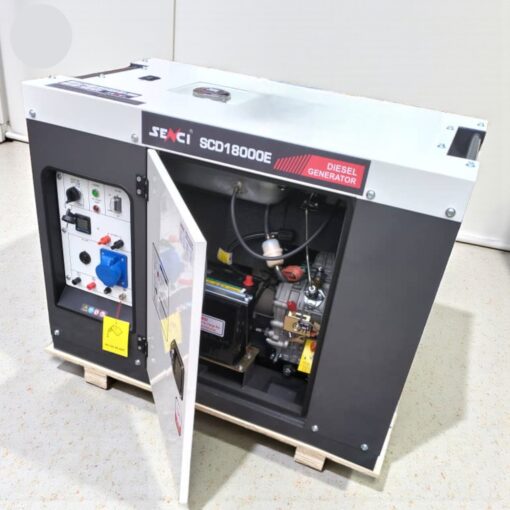

Senci Scd18000e 10kva Soundproof Diesel Generator

Generator's Features: Specification of Fg Wilson soundproof Diesel generator 13kva:

• Minimum Power Rating: 14.5kva
• Maximum Power Rating: 18.5kva
• Emissions/Fuel Strategy: EUIIIa Emissions Compliant
• Voltage: 220-415 Volts
• Frequency: 60Hz
• Speed: 1800 RPM
• 50 Hz Prime: Yes
• 50 Hz Standby: Yes
• Engine Model: Perkins® 403D-11G
• Compression Ratio: 18.3:1
• 8 Hr Fuel Tank
• Control Panel : DCP-10
• Length (A) mm: 2006
• Width (B) mm: 936
• Height (C) mm: 1230
• Gross Weight kgs: 400

Generator's Features: Voltage    230/400V Ph             3 Pf               0.8 Hz               60 Stand-by Ratings   300KVA/ 280KW Prime Ratings        300KVA/280KWRPM                        1500 Engine Data Manufacturer Perkins Model 404D-22TAG Cylinders 4, Vertical in-line Max. power @ rated rpm; kWm (BHP) 36.4 (48.8) Brake mean effective pressure; kPa 1095.4 Aspiration & Cooling Turbo charged air to air charge cooling Total displacement; L (in3) 2.216 (135.2) Bore; in. (mm) 3.3 (84) Stroke; in. (mm) 3.9 (100) Compression ratio 23.3:1 Governor type Mechanical Rotation Anti-clockwise viewed on flywheel Engine Electrical System Charging alternator 12V, Negative Ground Alternator rating; (amp) 65 Starter motor rated voltage; (dc) 12 Battery quantity x rating 1 x 54Ah Battery cold cranking amps; 410 Fuel System Type of injection Indirect Fuel injection pump Cassette type Fuel supply connection size 3/8'' NPT Fuel return connection size 1/4'' NPT Max. fuel lift; m (ft) 3 (9.84) Fuel prime pump Manual Max. fuel flow; L/h (gal/h) 63 (16.6) Fuel lift pump pressure; kPa 10 Fuel filter & water separator Available Exhaust System Exhaust gas flow; (m3/min) 8.4 Max. back pressure; (kPa) 10.2 Max. exhaust gas temp; (⁰C) 478 Exhaust outlet size; (mm) 42 Cooling System Radiator ambient temp; ⁰C (⁰F) 50 (122) Coolant capacity; L (gal) 9.3 (2.4) Coolant pump drive Gear Thermostat operation range; ⁰C 82-95 Max top tank temp; ⁰C 112 Cooling fan type Pusher Cooling fan material Plastic Combustion air flow; m3/min 2.49 Engine coolant flow; L/min (gal/min) 56.2 (14.9) Energy to coolant and oil; kWt 37.7 Energy to ambient; kWt 4.6 Energy to cooling fan; kWt 0.7 Air filter Dry element Lubrication System Oil capacity; L (gal) 10.6 (2.8) Oil cooler Water cooled Oil filter Spin on, replaceable Oil temp (continuous operation); ⁰C 125 Oil flow at rated speed; L/min 15.2 Alternator Data Manufacturer Stamford Model Winding #311 PI144H Winding #06 – Dedicated 1 phase PI144H Design 4 Pole, drip proof rotating field Exciter type Brushless, self excited EBS option is available Stator 2/3 winding pitch Rotor Single bearing, flexible disc Leads Winding #311 12 Winding #06 4 Voltage regulator Solid state, Volts/Hz Voltage regulation Self excited 1% Insulation Class H Temp. rise @ 40⁰C ambient 125⁰C Prime 150⁰C Standby Alternator Cooling Direct drive centrifugal blower Cooling air; m3/min 0.108 Waveform distortion No load < 1.5% Non-distorting balanced linear load
